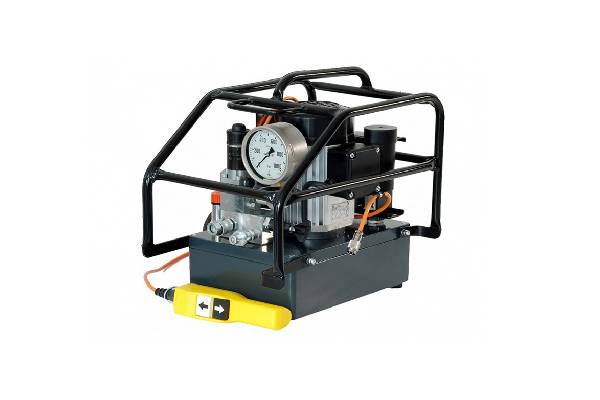

High Performance Hydraulic Torque Pump
| Powers Supply | Electric |
|---|---|
| Flow Rate | (6,5) – (1,8) –(0,7) L / min |
| Sizes | 40 x 28 x 40 cm |
| Operating Voltage | (110 /115/ 230) Volt |
High Performance Hydraulic Torque Pump Introduction
Features and Benefits
- Maximum working pressure: 800 bar
- Stepless pressure adjustment from 40 to 800 bar
- Supports multipoint connections for enhanced torque wrench performance
- High-performance pump units with double and three-stage options
- Precision gauge: Class 1, 1000 bar, 100mm, fully calibrated
- Engineered for continuous high-performance operation
- Equipped with an oil filter, oil cooler, and a stable flat oil tank (FE series)
- Features an oil level indicator, thermometer, and protective frame
Specification
| Model No | / | |
| Description | High Performance Hydraulic Torque Pump | |
| Powers Supply | Electric | |
| Operating Voltage | (110 /115/ 230) Volt | |
| Electric Motor Rating | 0,55 kW | |
| Flow Rate Displacement | 3 Stepped / 3 Acting | |
| Flow Rate | (6,5) – (1,8) –(0,7) L / min | |
| Oil Capacity | 6 Liter | |
| Carrying Handle | Available | |
| Cooling System | Available | |
| Weight | 30 Kg | |
| Sizes | 40 x 28 x 40 cm | |
| Compatible Torque Wrenches | All models up to 35.000 Nm | |
| Proposed Oil | Mobil DTE24 – Tellius 32 – Energol HLP-HM32 |
High-performance hydraulic torque pump with 800 bar max pressure, stepless 40-800 bar adjustment, and multipoint connection. Durable, precise, and designed for continuous operation. Buy now!
