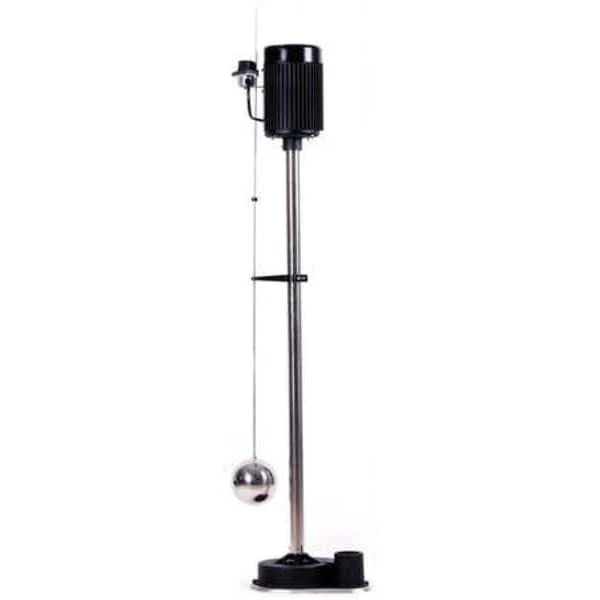

DAYTON 1/2 HP Sump Pump, 72 GPM, Vertical Float Introduction
Product
| Brand DAYTON | Max. Diameter Solids 3/4 in |
| Manufacturer Part Number | Min. Sump Pit Dia.18 in |
| HP1/2 hp | Body Dia.13 in |
| Rated Voltage120V AC | Overall Height 55 in |
| Hz60 Hz | Basin Dia.45 in |
| Phase – Pumps1 | Discharge 2 in FNPT |
| Amps6 A | Max. Liquid Temp.200 °F |
| Switch ActuationVertical Float | Max. Head Automatic |
| Switch Electrical ConnectionIntegral | Thermal Protection Automatic |
| Off Point 4 in | RPM1,725 RPM |
| On Point 11 in | Duty CycleContinuous |
| Body Material Cast Iron | Cord Length8 ft |
| Impeller Material Cast Iron | NEC Cord DesignationSJT |
| Flow Rate @ 5 Ft. of Head 103 gpm | Alarm IncludedNo |
| Flow Rate @ 10 Ft. of Head 72 gpm | Agency CompliancecCSAus |
| Flow Rate @ 15 Ft. of Head 39 gpm | UNSPSC40151512 |
| Flow Rate @ 20 Ft. of Head 2 gpm | Country of OriginChina |
These pedestal sump pumps feature a durable cast-iron body that effectively dissipates heat while draining water from basement sump pits. Ideal for smaller sump pits that can’t fit submersible pumps.
