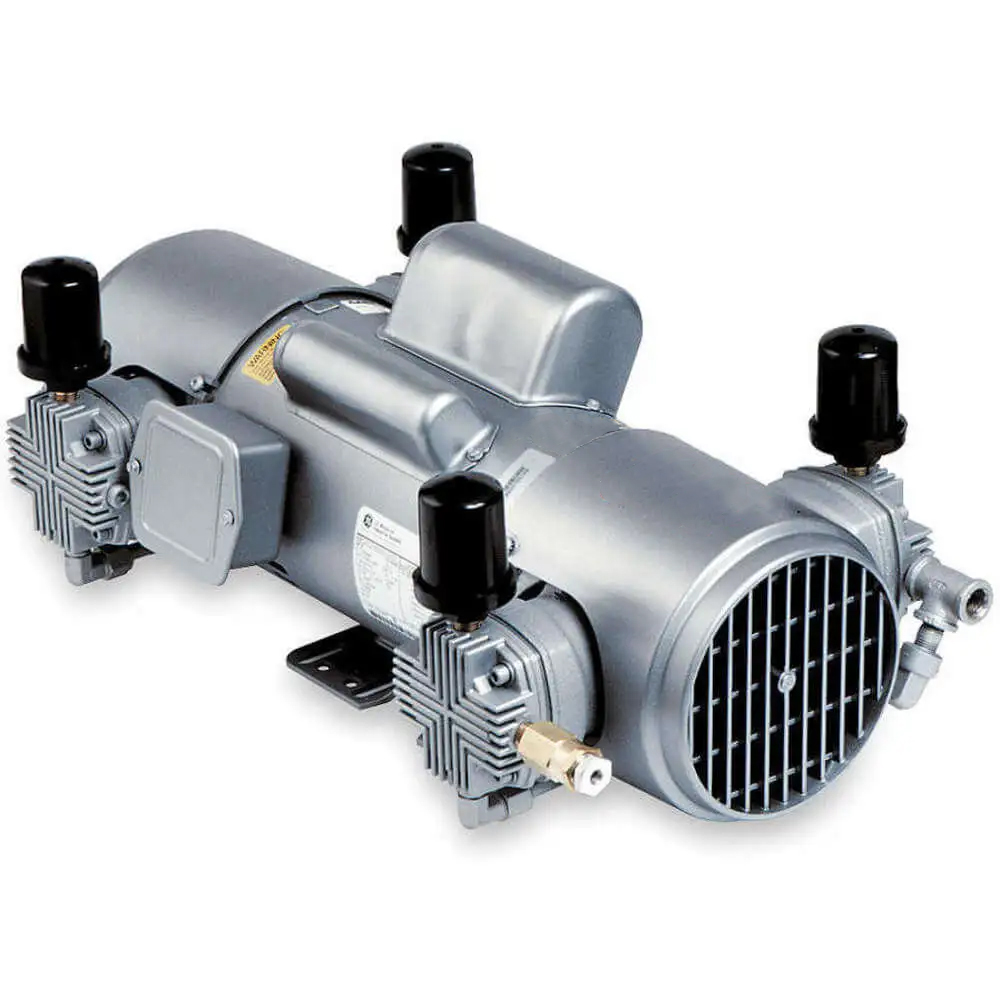

2HP Piston Air Compressor 115/230V, 1PH – Model 8HDM-19-M850X
| Voltage | 115/230 VAC |
|---|---|
| Outlet Size | 3/8″ NPT |
| Temp. Range | 32 Degrees to 104 Degrees F |
| Phase | 1 PH |
2HP Piston Air Compressor 115/230V, 1PH – Model 8HDM-19-M850X Introduction
Specification
| Item | Piston Air Compressor |
| Cylinder Material | Aluminium |
| Design | Rocking Piston |
| Finish | Gray Paint |
| Free Air Cfm @ 0 Psi | 11 |
| Free Air Cfm @ 100 Psi | 7 |
| Free Air Cfm @ 20 Psi | 9.9 |
| Free Air Cfm @ 40 Psi | 9 |
| Free Air Cfm @ 50 Psi | 8.5 |
| Full Load Amps | 24/12 |
| Hp | 2 |
| Hz | 60 |
| Inlet Size | 3/8″ NPT |
| Lubrication Type | Oil-Less |
| Max. Psi Cont./int. | 100/100 |
| Motor Type | Shaded Pole |
| Number Of Cylinders | 4 |
| Outlet Size | 3/8″ NPT |
| Overall Height | 8.5″ |
| Overall Length | 21.5″ |
| Overall Width | 12.25″ |
| Phase | 1 |
| Rpm | 1725 |
| Sound Rating | 63 dBA @ 60 psi |
| Temp. Range | 32 Degrees to 104 Degrees F |
| Thermal Protection | Automatic |
| Valve | Corrosion Resistant Sandwich |
| Voltage | 115/230 VAC |
Experience reliable and efficient performance with this 2HP piston air compressor, designed for both 115V and 230V, 1-phase power systems. The Model 8HDM-19-M850X is ideal for a variety of industrial and commercial applications, providing consistent air compression for tools, equipment, and machinery. Its robust construction ensures long-lasting durability, while its versatile voltage compatibility makes it suitable for diverse operational needs. Perfect for environments where reliable, continuous airflow is required.
